Description

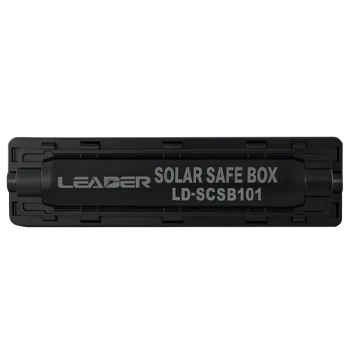

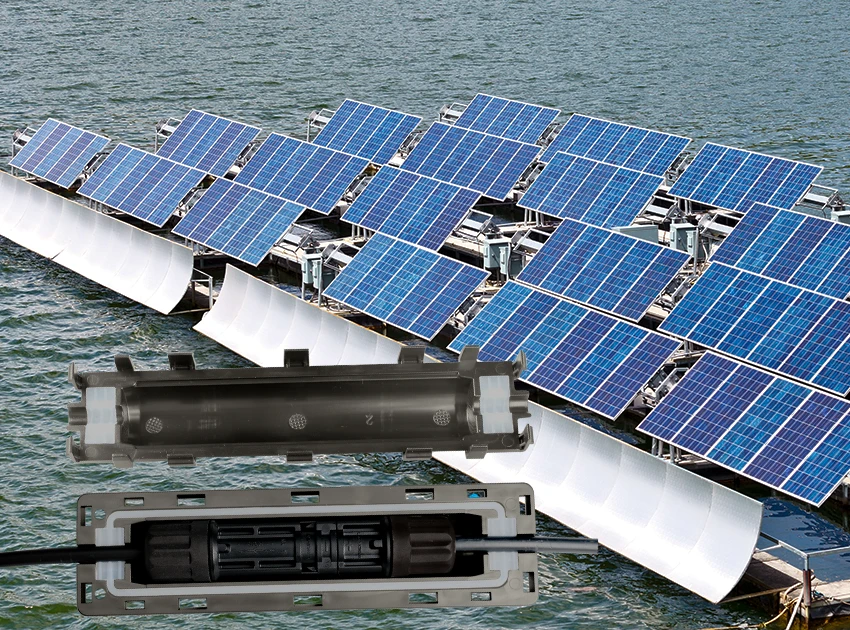

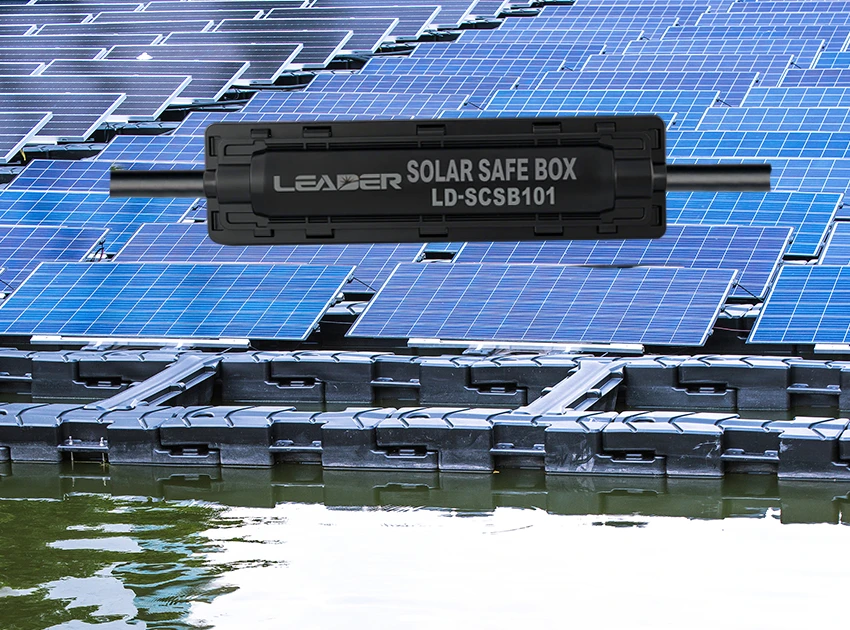

LEADER® Solar Connector Protective enclosure is designed for floating solar plants operating in harsh environments such as coasts, lakes, and wetlands. Resistant to humidity, salt spray, and mold, it extends connector lifespan and ensures reliable performance. Compatible with mainstream MC4 connectors, it is easy to install and provides double protection for long-term system stability.
Specification Of Solar Connector Protective Enclosure
| Product NO. | LD-SCSB101 | Waterproof Grade | IP65 |
| Cable OD | 5.3mm-6.4mm | Ambient Temperature Range | -40℃～+85℃ |
| Application | Floating Solar Station | Compatible PV Connectors | LEADER,MC4,H4,T4 |
| Material | PPO (UV Resistant) | Packing | 500pcs/Cartom |
| Color | Black | Certification | CE, RoHs |

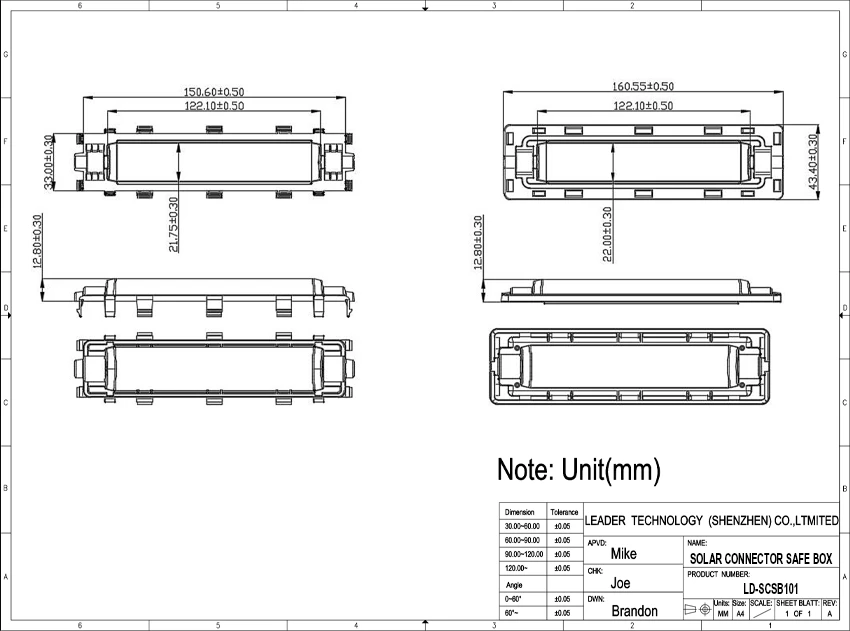

Drawing Of Solar Connector Safe Box
Installation Instructions For Solar Connector and Safe Box
Please download the datasheet : Solar Connector Protective enclosure
Production Processes Of Cable Connector
The intelligent and digital factory enabled by Leader Group integrates and applies new technologies and new intelligent manufacturing processes. The whole production and inspection process is integrated, intellectual, and digital. It replaces personnel’s original online inspection method, which significantly improves production efficiency. At the same time, it has perfect inspection and testing equipment to enhance the quality of the product. Guarantee the high quality of the connector. The precision of automated production equipment can reach 0.002mm, and the use of digital intelligent image detection, laser detection, and other detection technologies can eliminate the omissions and deficiencies of the original manual assembly of products by workers. All products are 100% inspected and digitally marked.
Standard Package Info:
| Carton Dimension(cm) | Pack list | QTY | Gross weight(kg) |
| 45cm × 35cm × 25cm | Solar Connector Protective Enclosure | 500pcs | 12.4kg |
Contact us now, Free sample is available
To find out more information about our products and services, send us a message and one of our PV experts will get back to you. We look forward to assisting you.
