PV Fuse DC 1500V 10*85 Solar Fuse 2-20A For Solar System Protection

Solar Fuse Rated voltage: DC 1500V, Rated current: 2-30A
Test According to IEC60269-1, Certificate TUV / CE / UL
For 10*85 Fuse, Operating Class gPV For Solar Protection
Quick And Easy To Install & Long-term Stable Connection
Our Solar Connectors Have Connected Over 26 GW By 2022
Contact Now , Quote Online & Support The Free Samples


LEADER® pv fuse 10x85mm 1500Vdc PV fuses is for protecting and isolating photovoltaic strings. Rated voltage: DC 1500V, Rated current: 2-20A, The fuses are specifically designed for use in PV systems with extreme ambient temperature, high cycling, and low fault current conditions(reverse current,multi-array fault) string arrays. Four styles are available for application flexibility.

  • Meets UL and IEC photovoltaic standards for global acceptance
  • Low watts loss performance for energy efficiency
  • Low-temperature rise performance for more precise sizing
  • In-ine crimp terminal version is easy to apply in wire harness construction
  • Typical applications: Combiner boxes, Inverters, PV wire harnesses

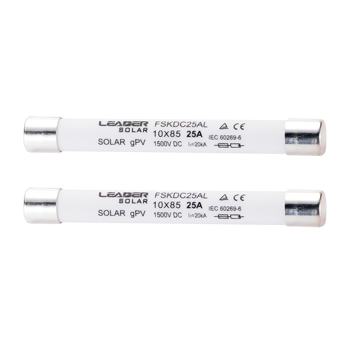

  • 10x85mm photovoltaic fuses -1500Vdc,2-20A


Specification Of PV Fuse

Product NO.FSKDC15ALRated Breaking Capacity(KA)30
Rated voltageDC 1500VClass of OperationgPV
Fuse Link size(mm)10×85;14×85Working Temperature-50℃-+90℃
MaterialCopper+Aluminum Oxide+SilverStandardIEC60269.6 GB/T13539.6
Rated Current(A)2A,3A,4A,6A,8A,10A,16A,20A


Drawing Of PV Fuse Types


Characteristic Curve


Please download the datasheet : PV Fuse


Production Processes of Cable Connector

The intelligent and digital factory equipped in the Leader cable factory makes the whole process of production and inspection integrated, intelligent and digital. It eliminates the mistakes and defects in the original manual assembly of products by workers, and significantly improves the reliability of products. At the same time, it has complete inspection and testing equipment, and adopts digital intelligent image detection, laser detection and other detection technologies to ensure the quality of shipped products. The accuracy of automated production equipment can reach 0.002mm, and all products are 100% inspected and digitally marked.


 Standard Package Info:

Carton Dimension(cm)Pack listQTYGross weight(kg)
38cm × 24cm × 17cmPV Fuse1800pcs18kg


Contact us now, Free sample is available

To find out more information about our products and services, send us a message and one of our PV experts will get back to you. We look forward to assisting you.

Mobile phone/whatsApp: +86-136-4291-9927 whatsApp icon

Mail ID : leader-tech1998@outlook.com


Skype id :lily-zou2011
