Leader® 3 pole L20 T series Waterproof Cable Connector is belong 3 pole L20 series connector. It ca be applied in PV inverter, Electric vehicle, Medical equipment, Interactive Smart Grid, Automation machine, Industrial PC, Marine device, Outdoor LED display, Outdoor LED lighting, etc.

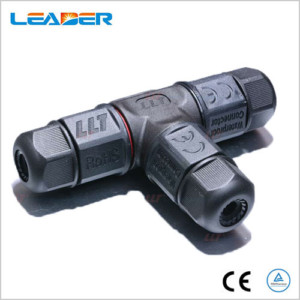

L20 T series Waterproof Cable Connector

Specification of 3 pole L20 T series Waterproof Cable Connector

3 pole L20 T series Waterproof Cable Connector
 Contacts No  2  3  2  3  2  3  2  3
 Voltage rating 250V 250V 250V 250V 110V 110V 110V 110V
 Current Rating 15A 15A 20A  20A 20A 20A 5A 5A
 Wire Gangue  <=1.0mmsq  <=0.75mmsq  <=2.5mmsq  <=1.5mmsq  <=2.5mmsq  <=1.5mmsq  <=1.5mmsq  <=0.75mmsq
 Mechanical life         3000 mating cycles
 Operating rating         -40 degree — +105 degree
 Waterproof level         IP 67
 Pin layout  2 Pole      3 Pole
Cable range         5.50mm -10.0mm

Certifications

Leader technology Co.,Limited obtains TUV,CE,RoHS and other certifications. TUV certification prevents personal injury and property damage may caused during use connector,including electric shock, overheating or fire hazard, mechanical aspects of hazardous, radioactive hazards and chemical hazards.CE mark is a safety certification mark,it is considered as the passport to open and enter the European market for manufacturers. CE on behalf of Conformite Europeenne. RoHS is a mandatory standard developed by the EU legislation, which stands for ‘Restriction of Hazardous Substances’.It mainly used to regulate the materials and process standards of electrical and electronic products,making it more conducive to human health and the environment.L20 T series Waterproof Cable Connector

L20 T series Waterproof Cable Connector L20 T series Waterproof Cable Connector

Production Processes of Cable Connector

First of all,we need to die casting pins.Then,inject plastic into it.Next,use machine to assembly positioning shrapnel.Fourth,auto assembly O-ring and connector.After assembly,it’s the processes of testing.Firstly,test its resistance.Secondly,test its pull. Thirdly,test its water proof.What’s more,test its wet insulation.At last,plastic closures and package.

L20 T series Waterproof Cable Connector
