MC4 WiLEADER® provides comprehensive low-voltage and medium-voltage solar AC cable solutions tailored for various photovoltaic (PV) projects. Our product range includes YJV, N2XY, NA2XSY, and NA2XS(F)2Y, THHN, and THWN-2 cables, suitable for both residential and utility-scale installations. In solar PV systems, AC cables are essential for transmitting the inverter’s output power to the grid. For distributed generation or plants near load centers, low-voltage AC cables can directly connect the inverter output to the LV grid. For connection to medium- or high-voltage networks, the AC output must first pass through a transformer to step up the voltage before reaching the substation. LEADER customizes cable solutions based on project-specific voltage levels, environmental conditions, and installation methods. Our solar AC cables are engineered for high durability, excellent thermal and UV resistance, and optimized conductivity, ensuring minimal power loss and maximum energy yield across the entire PV system lifecycle.
MC4 In-line Fuse
Specification Of AC Power Cable NA2XY
| Conductor | Class 2 Aluminum Conductor, IEC 60228 | Smoke Emission | Based on UNE-EN 60754-2 and IEC 60754-2(Optional) |
| Insulation & Sheath Jacket | XLPE Insulation, PVC Sheath, Per IEC 60502-1 / VDE 0276 | European CPR | Cca/Dca/Eca, according to EN 50575(Optional) |
| Rated voltage | Uo/U = 0.6/1kV, Per IEC 60502-1 / VDE 0276 | Water performance | AD7 |
| Test voltage | 3.5KV AC,50/60Hz, 5Min | Minimum bend radius | 15D (D:cable diameter) |
| Temperature Rating | -20oC-90oC | Optional features | Meter by meter marking, Rodent-proof and termite-proof |
| Fire Performance | Flame non-propagation based on UNE-EN 60332-1 and IEC 60332-1 | Certification | TUV/UL/RETIE/IEC/CE/RoHS |
Dimensions
The size from 10 mm2 to 630mm2 .
| Cable Size | Conductor Diameter | Thickness of insulation | Thickness of sheath | Cable Diameter | DC Resistance Max | Current Carring Capacity |
| n×mm2 | mm | mm | mm | mm | Ω/Km (20°C) | A (Air,20°C) |
| 10 | 3.9 | 0.7 | 1.4 | 10.3 | 3.0800 | 76 |
| 16 | 5.0 | 0.7 | 1.4 | 11.4 | 1.9100 | 98 |
| 25 | 6.0 | 0.9 | 1.4 | 12.8 | 1.2000 | 129 |
| 35 | 7.0 | 0.9 | 1.4 | 13.8 | 0.8680 | 158 |
| 50 | 8.1 | 1.0 | 1.4 | 15.1 | 0.6410 | 187 |
| 70 | 9.8 | 1.1 | 1.4 | 17.0 | 0.4430 | 233 |
| 95 | 11.4 | 1.1 | 1.5 | 18.7 | 0.3200 | 279 |
| 120 | 12.9 | 1.2 | 1.5 | 20.5 | 0.2530 | 320 |
| 150 | 14.4 | 1.4 | 1.6 | 22.6 | 0.2060 | 362 |
| 185 | 16.0 | 1.6 | 1.6 | 24.7 | 0.1640 | 408 |
| 240 | 18.4 | 1.7 | 1.7 | 27.5 | 0.1250 | 479 |
| 300 | 20.3 | 1.8 | 1.8 | 30.0 | 0.1000 | 548 |
| 400 | 23.4 | 2.0 | 1.9 | 33.5 | 0.0778 | 637 |
| 500 | 26.2 | 2.2 | 2.0 | 36.9 | 0.0605 | 723 |
| 630 | 29.8 | 2.4 | 2.2 | 41.1 | 0.0469 | 823 |
Please download the datasheet: AC Power Cable 0.6/1KV 1*120 AL XLPE PVC
Certifications
Our products have obtained TUV Rheinland, UL, CE, Colombia RETIE, EU CPR certification, ROHS and many other international certifications.
Production Processes of aC solar Power Cable
We specialize in intelligent and green manufacturing of AC solar cables. Our modern workshop is equipped with high-speed extrusion lines, laser diameter control, spark testing, helium-sealing, and full-process digital traceability to ensure precision and reliability. The cleanroom environment enhances product consistency and UV/weather resistance. All cables are certified by CE, TÜV, and IEC standards, meeting the demands of utility-scale, commercial, and distributed PV systems. We deliver safer, more efficient, and sustainable energy cable solutions for the global solar industry.
Packing For Shipment
Multiple packaging methods, suitable for different transport conditions for export by sea.
| Packing picture | Packing Reel | Drum Dimension(m) Diameter/Inner Width/Inner Depth | Drum/Meter |

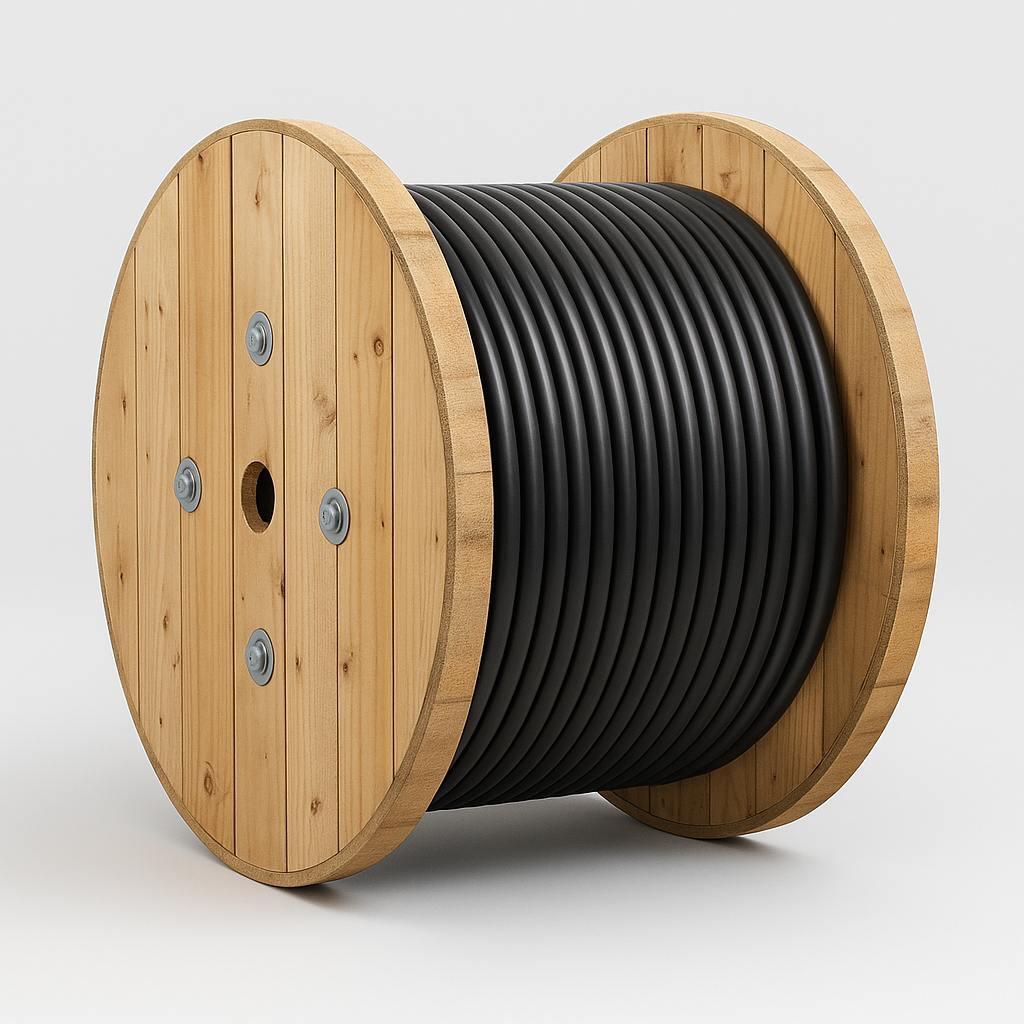

 | Wood Drum | 1.6×0.7×0.4 m | 1000M |

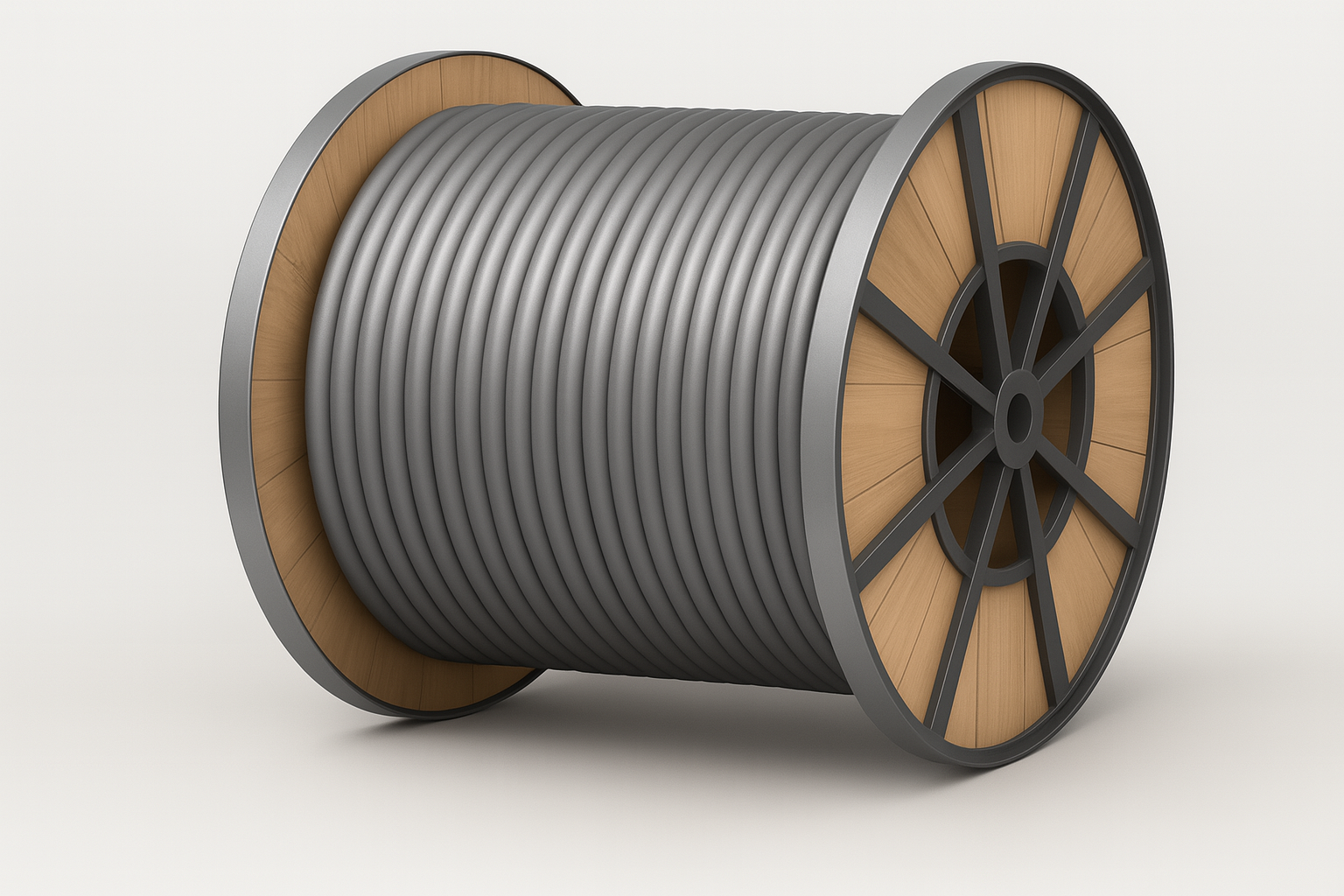

 | Steel-Wood Drum | 2.2×1.05×0.55 m | 2000M |
